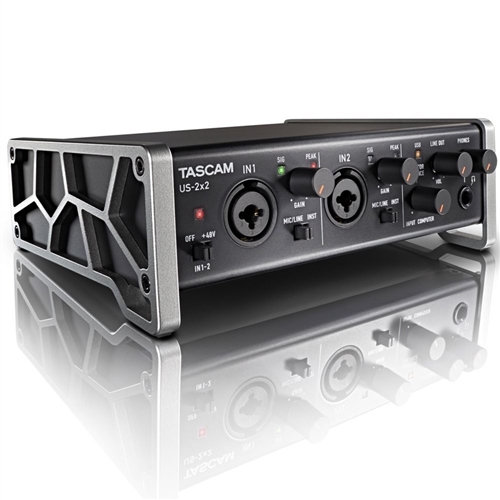

Tascam US-2x2 USB Audio Midi Interface
Tascam US-2x2 USB Audio Midi Interface



Alternative Views:

TASCAM’s US-2x2 combines great audio quality and ergonomic design for a powerful 2-in/2-out USB 2 Audio interface.

Two of TASCAM’s Ultra-HDDA mic/line preamps provide up to 57dB of gain with nearly inaudible noise and distortion specs. The audio design features high-performance, musical components like NE5532 op amps for rich sound quality without coloring the source.

The US-2x2 includes class-compliant drivers for plug-and-play operation on Mac OSX and iOS devices like the iPad, and a simple driver adds ASIO compatibility for Windows. MIDI in and out are also included for connecting synths, drum machines, and controllers. The interface includes two DAW applications to choose from – both Cakewalk SONAR X3 LE and Abelton Live Lite 9.

With solid audio specs, iOS compatibility, and an easy-to-read angled design, the US-2x2 is the ultimate 2-channel interface for home, project, and mobile studios.

Functions common to both the US-2x2

  • Ultra-HDDA (High Definition Discrete Architecture) mic preamps with −125dBu EIN
  • NE5532 op-amps used at the audio input and output stages
  • Up to 96kHz/24-bit recording
  • Support for Windows and Mac OS X operating systems
  • USB 2.0 computer connection
  • Connect with iPads and other iOS devices
  • +48V phantom power for all inputs
  • Two switchable high-impedance inputs
  • Microphone preamp gain range of 57 dB
  • Direct monitoring function for zero-latency monitoring
  • Tough all-metal casing for durability
  • Angled design provides excellent usability on a desktop
  • Balanced analog TRS output jacks suitable for connection to powered monitors
  • Standard TRS headphones output jack
  • Separate controls for line and headphones output volumes
  • MIDI input and output
  • Output sources can be selected in the setting panel
  • Input sound monitoring can be set to stereo or mono
  • Input muting function eliminates noise from unused inputs
  • USB class compliant 2.0 support
  • License cards included for SONAR X3 LE/Ableton Live Lite 9
  • Confirmed operation with major DAW software (SONAR, ProTools, Cubase, Live, Studio One, Garage Band）
Price: $149.99
UPC: 043774031009
Part Number: US-2x2

Availability: In Stock

Free Shipping
Product Code: TAS-US-2X2


Accessories*: 		No Thanks

Qty:
DESCRIPTION
 		SPECIFICATIONS
 		IN THE BOX

Ultra-HDDA Mic Preamps for Clear Audio Quality from All of Your Mics
TASCAM's own Ultra-HDDA mic preamps are the cleanest, quietest, and best-sounding from any interface in their range. A gain range of 57dB makes them ideal for any type of mic – dynamic, condenser, or ribbon. With preamp performance well beyond any interfaces in their price range, the Ultra-HDDA preamps on the US-2x2 makes your tracks sound like a record.

Discrete Ultra-HDDA Mic Preamps Deliver Low Noise and Low Distortion
TASCAM's Ultra-HDDA (High Definition Discrete Architecture) mic preamp design is based on discrete components, just like classic professional gear. They achieve an incredible EIN rating of -125 dBu, meaning their noise level is practically below the range of hearing. Other impressive specs include a signal-to-noise ratio of 101 dB, out-speccing anything in its price range. But instead of judging the design merely by test measurments, key components were selected following extensive listening tests.

Musical Components like NE5532 Op-amps Used for Input and Output Stages
TASCAM uses proven, great-sounding components throughout the US-2x2. One example are NE5532 op-amps, famously used throughout classic recording consoles and signal processors due to their sweet, musical sound.

XLR and TRS Accept Balanced Mic and Line Level Signals
The mic input features a professional XLR connector, which supplies +48V phantom power for condenser microphones. The US-2x2 is built from heavy duty metal throughout, so it stays on your desk even when moving mics around.

An additional TRS input jacks is provided for balanced line-level signals from professional processors and synthesizers. Finally, the first two inputs can be switched to high-impedance for direct recording of electric guitar and bass. (Only the XLR or 1/4" input can be used, not both at the same time.)

Wide Gain Range Supports Dynamic and Ribbon Microphones
Non-powered mics like dynamic and ribbon designs can sound great, but they also have a lower output level than condenser microphones. The US-2x2's Ultra HDDA mic preamps not only feature 57dB of gain, but also a low-noise design so you don't crank up the noise at the same time. Plug in modern or classic mics and still get plenty of level on your tracks.

Rock Out with Amp Simulator Software using the Guitar Inputs
The first two channels can be switched to direct guitar inputs. They're ideal for direct recording of electric and acoustic guitar and bass without the need for a preamp. Use them with amp modeling software, like the TH2 effect included with SONAR X3.

* Guitar effect plug-ins sold separately. The TH2 amp simulator is not included with the bundled SONAR X3 LE. An upgrade fee may be required.

Simple Operation and an All-New USB Driver
TASCAM makes installing the US-2x2 a snap, whether usnig the built-in class-complient driver or the high-performance ASIO or Core Audio drivers. TASCAM started from scratch on the software, developing them in-house through extensive testing, resulting in our most robust drivers ever.

Also included with the driver software is a simple-to-use on-screen control panel, which monitors and adjusts critical interface settings.
