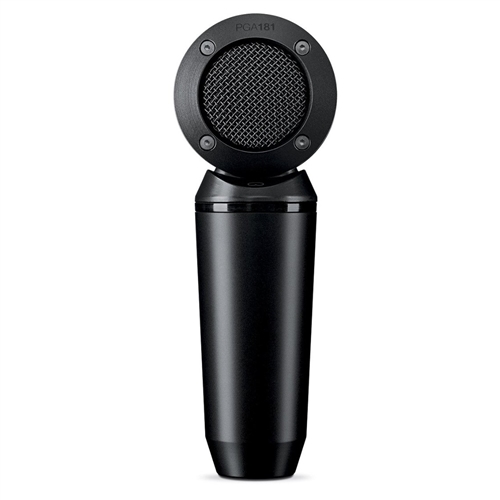

The PGA181’s smooth frequency response and versatile design make it ideal for instrument and vocal recording. Available with and without a cable.

• Type Electret condenser
• Frequency Response 50 to 20,000 Hz
• Polar Pattern Cardioid
• Output Impedance 120 Ω
• Sensitivity at 1 kHz, open circuit voltage -38 dBV/Pa (12.7 mV)
• 1 Pa=94 dB SPL Maximum SPL
• 1 kHz at 1% THD, 1 k Ω 138 dB SPL
• Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
• Weight 383 g (13.5 oz.)
• Connector Three-pin professional audio (XLR), male
• Housing Cast zinc
• Power Requirements 48 VDC phantom power (4 mA

Warranty Information By Shure Every Shure® product comes with a Limited Warranty that in normal use the product will be free of any defects in materials or workmanship for a period of one or two years from its original date of purchase.

However, this is not intended as a complete statement of the actual Limited Warranty applicable to any product. The Limited Warranty includes other important terms, conditions, limitations, and exclusions. For the actual Limited Warranty applicable to any product, please refer to the warranty card issued by Shure and packaged with the product, or contact Shure Incorporated or its authorized retailer.

* * Shure Limited Warranty does not apply to Shure software products – please see the associated software license agreement for any warranty applicable to such products. Shure Limited Warranty covers only Shure-branded products - for third party products distributed by Shure, please contact the manufacturer of such product for warranty information.
