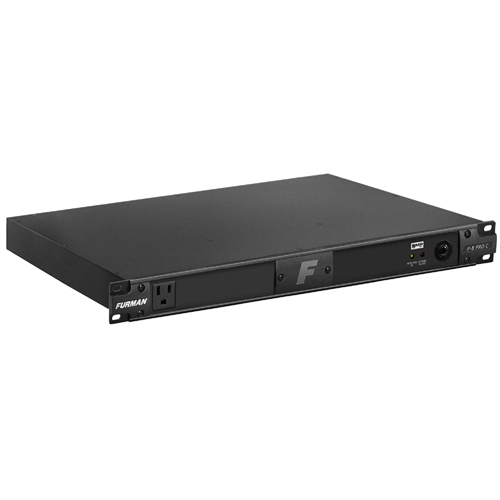

The Classic Series from Furman brings together superior protection and
outstanding performance in a sturdy, rack-mountable design. The Classic
Series features Furman’s revolutionary Series Multi-Stage Protection
(SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown
(EVS). Together, these technologies comprise what is, without question,
one of the world's most advanced and comprehensive transient voltage
surge supressors.
Instrument Rigs
You've got a rack for your effects, preamps, tuner...You're going
to plug that into the wall? One big spike and your rig is up in smoke.
Furman's advanced Series Multi-Stage Protection defends your gear from
the spikes and surges that are so common at gigs and practice spots.
With Furman's advanced Linear Filtering Technology, you'll get a quieter
tone without pops, crackles, and the local radio station coming out of
your amp.
Recording
Can't track down where that noise is coming from? Your mix sounding
flat? With Furman's advanced Linear Filtering Technology you'll lower
the noise floor caused by the dirty AC power coming into your console or
DAW. Furman's advanced advanced Series Multi-Stage Protection keeps
your sensitive digital equipment from acting funny or burning up due to
everyday spikes and surges. With a 15A capacity and eleven total
outlets, it's enough to power your whole home studio.
DJ Equipment
Bars, clubs and other event venues have some of the worst power out
there - from air compressors turning on and off to light shows pulling
current loads up and down, the AC power can be a strain on the circuits
in your rig. Furman's advanced Series Multi-Stage Protection and LiFT
keeps the bad stuff out and the dual pull-out front panel lights let you
discreetly see your board and gear without distracting from the show on
the dance floor.
Pro Audio
When you're out there gigging, you never know what kind of power
you're going to get. The wear and tear on mobile rigs eventually takes
it toll - that's why it's smart to plug into Furman's advanced Linear
Filtering Technology. It keeps your equipment safe and sounding clean.
Whether you're setting up a show at the local club or powering up the
church band for their next service, make sure you give them power they
can trust.
- Maximum Output Current: 20 amps
- BNC Socket w/Switch: Rear rack lamp, 12VAC 500MA max (lamp not included)
- Operating Voltage: 90 to 140 VAC
- Over Voltage Shutdown: 140 VAC typically
- Spike Protection Mode: Line to neutral, zero ground leakage
- Spike Clamping Voltage: 188 Vpk @ 3,000 Amps (133 VAC RMS)
- Maximum Surge Current: 6,500 Amps
- Frequency: 50/60Hz
- Noise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 100 dB @ 10MHz. Linear attenuation curve from 0.05 - 100 ohms line impedance
- Dimensions: 19” W x 10.5” D x 1.75” H
- Weight: 11 lbs.
- Power Consumption: 12 watts
- Safety Listing: CSA UL1449, CE, NRTL-C
By Furman Sound:
What is the warranty coverage period on new Furman products?
Furman has Limited Warranty terms of one, three or five years (depending on the model). This warranty will cover
defects in materials or workmanship on registered units. Our warranty
covers parts and labor, with the term measured from the date of purchase
of the new unit by the original owner. The warranty is not
transferable.
How can I know if my unit is “in-warranty”?
SAVE YOUR SALES RECEIPT!
The receipt is your proof of purchase and confirms the product was
purchased at an authorized Furman dealer. It will need to be submitted
to Furman in order to process any warranty claims. Proof of purchase is
also required for any connected equipment warranty claim. No connected
equipment claim will be considered without a valid sales receipt.
|
|
|
 |
|
 |
|
