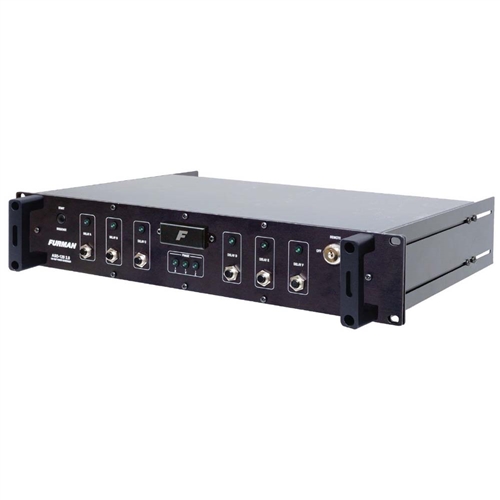

Furman ASD-120 2.0 6-channel Sequencing Power Distributor
Furman ASD-120 2.0 6-channel Sequencing Power Distributor




Authorized Dealer. The ASD-120 2.0 is a six channel power sequencing device intended for use in installations where multiple electrical loads must be powered on and off in a delayed and orderly sequence.

Typical applications for the ASD-120 2.0 include: touring PA or sound reinforcement systems, musical or theatrical acts, mobile recording facilities, and
on-location film or video shoots. Essentially, any situation where AC power must be distributed to multiple circuits and activated or deactivated in discrete stages would
benefit from the use of an ASD-120 2.0.

• Six Independent 20 amp circuits @ 120V - 120 amp total load capacity
• Six delay banks with rear panel NEMA 5-20R duplex outlets and optically isolated DC relay outlets
• Front panel status power LED, Bypass Switch and Circuit Breaker for each Delay Bank
• 120A power distribution block accommodates 120V/240V single phase, or 120/208-Y three phase power
• X Y Z Status LED confidence indicators for each Input Phase
• Sequence unit ON or OFF from front panel or by remote switch

AC Input Voltage
120/240V single phase, or 120/208V three phase.
Input Current: 120 Amps maximum
Output: Six, 120V 20A circuits
Maximum AC Current Rating
Six, 120V 20A circuits for 120A total.
Power Distribution Block
Wire Guage 2, 3, 4-6 AWG,
Phase indicators: 3 LEDs, one per phase X, Y, and Z
AC Output Receptacles
Rear Panel Outlets: 6 duplex NEMA 5-20R sequenced.
Front Panel: 6 thermal circuit breakers, one per
duplex pair.
Operating Temperature and Humidity
5 to 40C (40 to 105F), <90% Relative Humidity
Price: $1,994.95
UPC: 654061041191
Part Number: ASD-120-2.0

Availability: In Stock

Free Shipping
Product Code: FURMAN-ASD-120-2.0


Accessories*: 		No Thanks

Qty:
DESCRIPTION
 		SPECIFICATIONS
 		IN THE BOX

The ASD-120 2.0 is a six channel power sequencing device intended for use in installations where multiple electrical loads must be powered on and off in a delayed and
orderly sequence.

Please Note: Because the ASD-120 2.0 switches hazardous voltages and high currents, we recommend that the installation be performed by a qualified electrician. For safe operation, the ASD-120 2.0 must be installed in accordance with local/municipal requirements and the National Electrical Code (NEC). Please feel free to contact Furman Technical Services if you have any questions or concerns regarding the installation, operation or application of the ASD-120 2.0.
