Vocals, lead & backing - tight pattern control and tailored response enables vocals to cut through the mix.

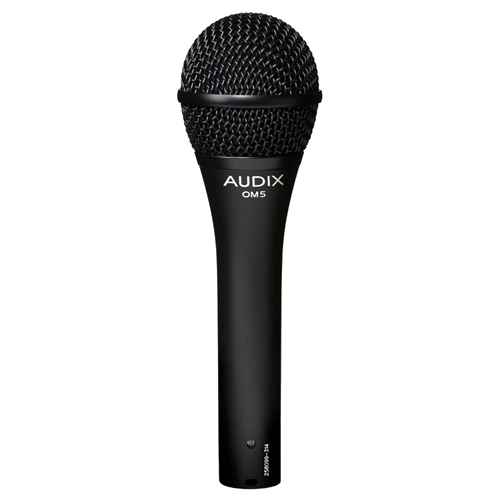

The OM5 is made with an extremely tight and uniformly
controlled hypercardioid polar pattern which isolates the vocals from
the rest of the instruments on stage or in a studio. Used on
stage, in studios and for broadcast applications, the OM5 has a
reputation for clarity, resistance to feedback and ability to handle
SPLs in excess of 144 dB without distortion. The OM5 is naturally
attenuated at 120 Hz to reduce boominess and handling noise. The
mid-range is tailored to provide extra presence in the vocals allowing
the vocalist to be easily heard through the main speakers as well as the
monitors. The OM5 is designed, assembled and tested by Audix in the USA and is
used for stage, studio and broadcast applications. The OM5 is widely
known in professional audio for its clarity, resistance to feedback and
ability to handle SPLs in excess of 144 dB without distortion.
Designed
with a tailored midrange, the OM5 will put the lead vocalist out in
front of the mix regardless of the volume on stage. The OM5 has an
extremely tight and uniformly controlled hypercardioid polar pattern
which helps to isolate the vocals from the rest of the instruments on
stage. With a wide frequency range of 48 Hz - 19 kHz, the OM5 employs a
VLM (very low mass) diaphragm for natural response, accurate sound
reproduction and exceptional transient response.
The OM5 is naturally
attenuated at 120 Hz to reduce boominess and handling noise. The OM5 is
comfortable to hold, very easy to work with and made to last a lifetime.
Transducer Type: Dynamic Frequency Response: 48 Hz - 19kHzPolar
Pattern: HypercardioidOutput Impedance: 200 ohms Sensitivity: 1.8
mV/Pascal @ 1k Off Axis Rejection: > 30 dB Maximum SPL: 144 dB
<>
- Transducer VLM Type B, Dynamic
- Polar Pattern Hypercardioid
- Frequency Response 48Hz - 19kHz
- Maximum Input Sound Level 144dB
- Power Requirements None Dynamic, Requires No Phantom or Battery Power
- Output Impedance 200 Ohms
- Output Connectors Switchcraft XLR-3M Type
- Dimensions 6.78 x 1.88" (172.2 x 47.8mm)
- Weight 10.8 oz. (307 g)
- Download spec sheet
Audix Limited Warranty Audix guarantees our products to be free of manufacturing defects as follows: 5 years for dynamic microphones. 3 years for condensers and wireless products.
Products found to be malfunctioning due to a manufacturing defect will be repaired or replaced at no charge to the customer. All other repairs will result in a nominal service charge
|
