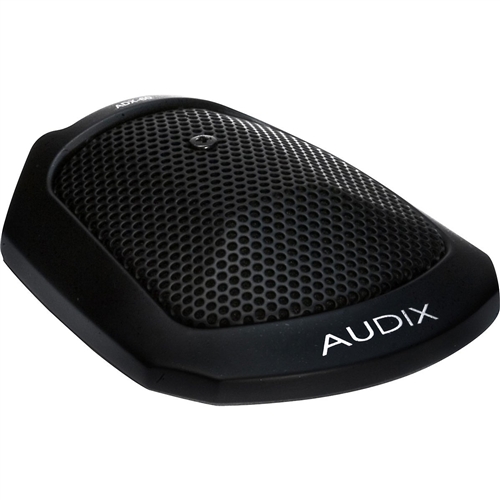

Boundary condenser microphone designed for stage, studio and broadcast applications.
A professional pre-polarized condenser microphone
the ADX60 is designed for stage, studio and broadcast applications. The
ADX60 is highly sensitive and able to handle distance and area miking
for various applications including conferences, plays, theatre and
acoustic instruments.
The ADX60 has a uniformly
controlled hemicardioid polar pattern and is designed to capture a
designated area. This mic requires a 9 - 52 V phantom power for
operation and is equipped with a 25' cable and phantom power adapter.
The
ADX60 is easy to position, durable and is manufactured with a high
performance 12 mm capsule, steel mesh grill and space saving mini-XLR
connector.
The Audix ADX60 Boundary Microphone is a professional pre-polarized
condenser microphone designed for stage, studio, and broadcast
applications.
The Audix ADX60 mic is known for its high sensitivity and
ability to handle distance and area miking for a wide variety of
applications including conferencing, plays, theatre, and acoustic
instruments.With a uniformly controlled hemi-cardioid polar pattern, the
Audix ADX60 mic is designed to capture a specific designated area,
hence the name "boundary microphone." With a wide frequency range of
50Hz18kHz, the Audix ADX60 requires 952 volts phantom power for
operation and is equipped with a 25' microphone cable and phantom power
adapter (APS-910).The durable Audix ADX60 Boundary Microphone is very
easy to position and manufactured to high standards and tight
tolerances.
The Audix ADX60 boundary microphone's roadworthy
construction includes a precision die-cast zinc casing, high-performance
12mm capsule, black e-coat finish, laser-etched model and serial
number, steel mesh grill, and space saving mini-XLR connector.
- Transducer Condenser
- Polar Pattern Cardioid
- Frequency Response 50Hz - 18kHz
- Dynamic Range (Typical) Not Specified by Manufacturer
- Signal-to-Noise Ratio 65dB
- Maximum Input Sound Level 130dB
- Power Requirements 9 - 52V Phantom Power
- Output Impedance 250 Ohms Balanced
- Output Connectors Mini Switchcraft 3-pin (Standard 3-pin XLR on the included APS-910 power supply)
- Pad No
- Low Frequency Roll-Off No
- Dimensions Cable Length: 25' (7 m)
- Microphone: 2.75 x 3.34" (70 x 85mm) (WxD)
- Weight 5 oz (143g)
