Audio-Technica AT4040 Cardioid Condenser Microphone

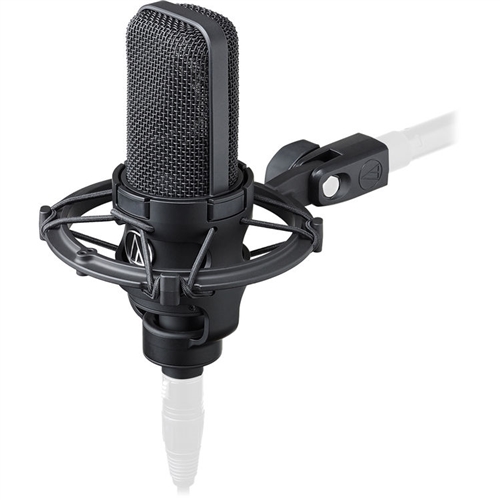

Audio-Technica AT4040 Cardioid Condenser Microphone






Alternative Views:


The AT4040 side-address condenser microphone features an advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics.

A marriage of technical precision and artistic inspiration, the AT4040 offers exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility.

This ultra-consistent microphone may be used with confidence in a wide variety of studio and live miking applications, even under the stringent demands of digital recording systems.

The AT4040’s low-noise circuitry is symmetrical and transformerless, resulting in exceptional transient response and clean output signals for transparent reproduction of even the most troublesome of instruments and sound effects.

  • Technically-advanced large diaphragm tensioned specifically to provide smooth, natural sonic characteristics
  • Externally polarized (DC bias) true condenser design
  • Exceptionally low noise, wide dynamic range and high-SPL capability for greatest versatility
  • Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
  • Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
  • Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
  • State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
  • Custom shock mount provides superior isolation
  • Switchable 80 Hz hi-pass filter and 10 dB pad

AT4040, 40 Series Microphone - Listen for yourself!

Click to listen or downloadFemale Vocals - Click to listen or downloadMale Vocals - Click to listen or downloadAcoustic Guitar

40 Series Five-Year Limited End-User Warranty


Price: $299.00
UPC: 4961310137793
Part Number: AT4040

Availability: In Stock

Free Shipping
Product Code: AUDIO-TECH-AT4040


Accessories*:
No Thanks

Qty:
DESCRIPTION
SPECIFICATIONS
IN THE BOX

Microphone Conditions (Additional comments)

Open Circuit Sensitivity At 1 kHz, with 1 Pa (Pascal) = 94dB sound pressure level (SPL), measured at diaphragm. Stated in dB re 1 volt, and in millivolts.

Noise, typical A-weighted.

Weight Stated for the microphone only, without accessories, and without attached cable/power module, if applicable.

Frequency Response (Graph) Shows mic output versus frequency with a constant sound input level from a source 0.5 meters from the diaphragm. Each vertical division in the graph is 10dB. A dashed line, if present, shows the effect of a low-roll-off (hi-pass) function.

Polar Pattern (Graph) Shows mic output versus angular direction of the sound source, with a constant sound input level at 1 kHz, at a constant distance from the diaphragm. Zero degrees (0°) is the "front" of the mic. Each circular division in the graph is 5 dB, beginning from the 0° point and counting inward.

Additional Information Profile pages for some products provide links to additional information, such as further specifications, operating instructions, product reviews, etc. These may be in various forms, such as text, graphics and pdf files.

Related Models Some profile pages provide links to other models of a most-similar or closely related type or function that may also be of interest.


Headphone/Headset Conditions (Additional comments)

Headphone Sensitivity Input of 1 milliwatt at 1 kHz into rated impedance; output in dB SPL, using a Brüel & Kjaer 4153 coupler.

Maximum Input Power At 1 kHz into rated impedance.

Boom Mic Sensitivity Open circuit, at 1 kHz, with 1 Pa (Pascal) = 94dB sound pressure level (SPL), measured at diaphragm. Stated in dB re 1 volt, and in millivolts.

Additional Information Profile pages for some products provide links to additional information, such as further specifications, operating instructions, product reviews, etc. These may be in various forms, such as text, graphics and pdf files.

Related Models Some profile pages provide links to other models of a most-similar or closely related type or function that may also be of interest.
