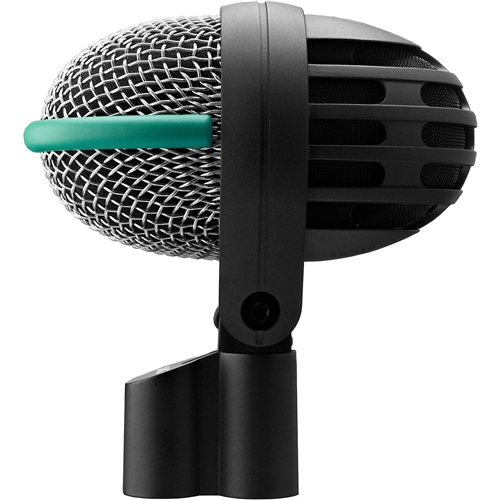

The D112 MkII professional dynamic bass drum microphone features a new integrated flexible mount, while retaining all the sonic strengths that have made it's predecessor the industry-standard. Over the years the D112 has earned a well-deserved reputation as one of the best bass drum microphones ever made, for its high SPL capability, punchy EQ and bulletproof construction.

The D112 MkII can handle more than 160 dB SPL without distortion. Its large diaphragm has a very low resonance frequency that delivers a solid and powerful response below 100 Hz. Its authoritative low end is complemented by a narrow-band presence boost at 4 kHz that punches through even dense mixes and loud stage volumes with forceful impact. One of the many reasons artists and sound engineers love the D112 MkII is that it requires no additional EQ to sound just right as soon as you bring up the fader. Further refining its performance, the D112 MkII features an integrated hum-compensation coil that keeps noise to an absolute minimum.

In addition to being an exceptional bass drum mic on stage and in the studio, the D112 MkII is an excellent choice for miking electric bass cabinets and trombones.

Integrated flexible mount
makes it even more versatile

Bass resonance volume chamber
for unique, punchy sound

Large diaphragm dynamic microphone
delivers accurate low frequencies

Integrated hum-compensation coil
keeps noise to an absolute minimum

Industry benchmark for bass drum microphone
used on stages worldwide for over 30 years

• General
• Audio Frequency bandwidth 20 to 17000 Hz
• Sensitivity 1.8 mV/Pa
• Electrical Impedance 210 Ohms
• Recommended Load Impedance 2000 Ohms
• Polar Pattern cardioid
• Audio Output
• Type Balanced XLR
• Gender Male
• Contacts 3-pin
• Dimensions / Weight
• Length 115 mm
• Height 126 mm
• Diameter 70 mm
• Net Weight mic only 300 g

Limited Warranty valid United States of America (*) and Canada (**):
AKG Acoustics warrants AKG products against defects in material or workmanship for a period of two years from the date of original purchase, and agrees to repair or, at our option replace any defective unit without charge for either parts or labor. AKG grants a three-year warranty covering select products mainly studio and boundary layer microphones (see list of products above) against defects in material and workmanship This warranty is valid for AKG or AKG/CROWN products purchased and delivered within the United States (*) / Canada (**) for the original purchaser only. The purchaser’s Bill of Sale will serve as proof of sale and warranty validity in the U.S (*) / Canada (**). Shipment of defective items to AKG for repair will be at the customer’s own risk and expense. AKG will assume the return shipping cost for all items repaired under warranty.

IMPORTANT: This warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, the affixing of any attachment not provided with the product, loss of parts, or connecting the product to any receptacle other than specified.

This warranty is void unless AKG Acoustics, U.S.’s service center(*) / the authorized AKG Service Center of Canada (**) performs the repair. No responsibility is assumed for any special, incidental or consequential damages caused by the consumer. However, the limitation of any right or remedy shall not be effective where law prohibits such.

General Return Procedures for US AKG Service
SA# IS REQUIRED for AKG repair service. Please call (818) 920-3237 and request a service authorization prior to sending out any repairs. Please be sure to attach the SA# on the outside of any repair you send in. This step will enable us to determine where your particular repair will need to be sent to insure that nothing gets lost.

RA# is REQUIRED for AKG credit returns. Please call (818) 920-3276 and request a return authorization prior to returning any AKG purchases. Please be sure to attach the RA# on the outside of any returns you send in. This step will insure that the return procedure is completed smoothly.

All AKG customer-owned products being returned for warranty service must include a copy of the customer’s bill-of-sale. Warranty approvals will not be granted if an original receipt or copy of a receipt is not enclosed.

Please enclose a note explaining the symptom or difficulties observed with the product’s performance. Also, include a contact name, the street address for return shipping and a daytime phone number should AKG need to contact you regarding your repair.
